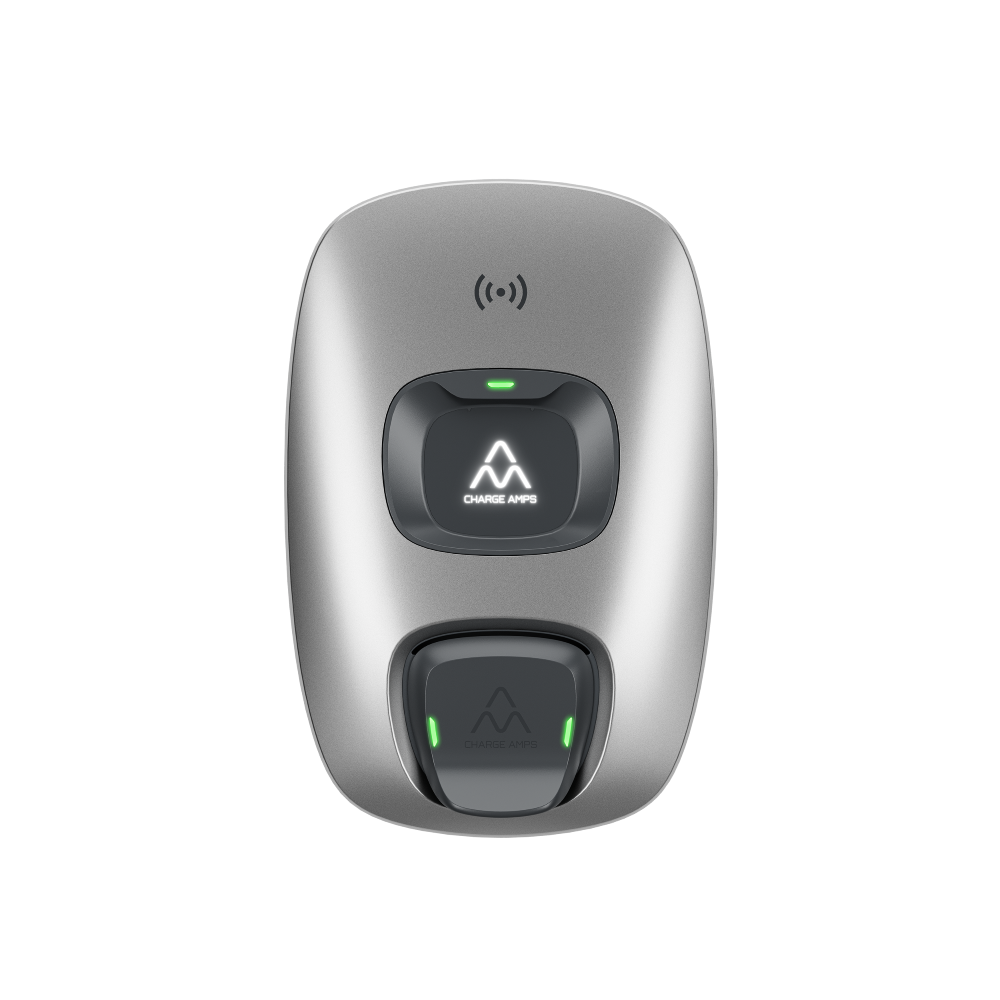

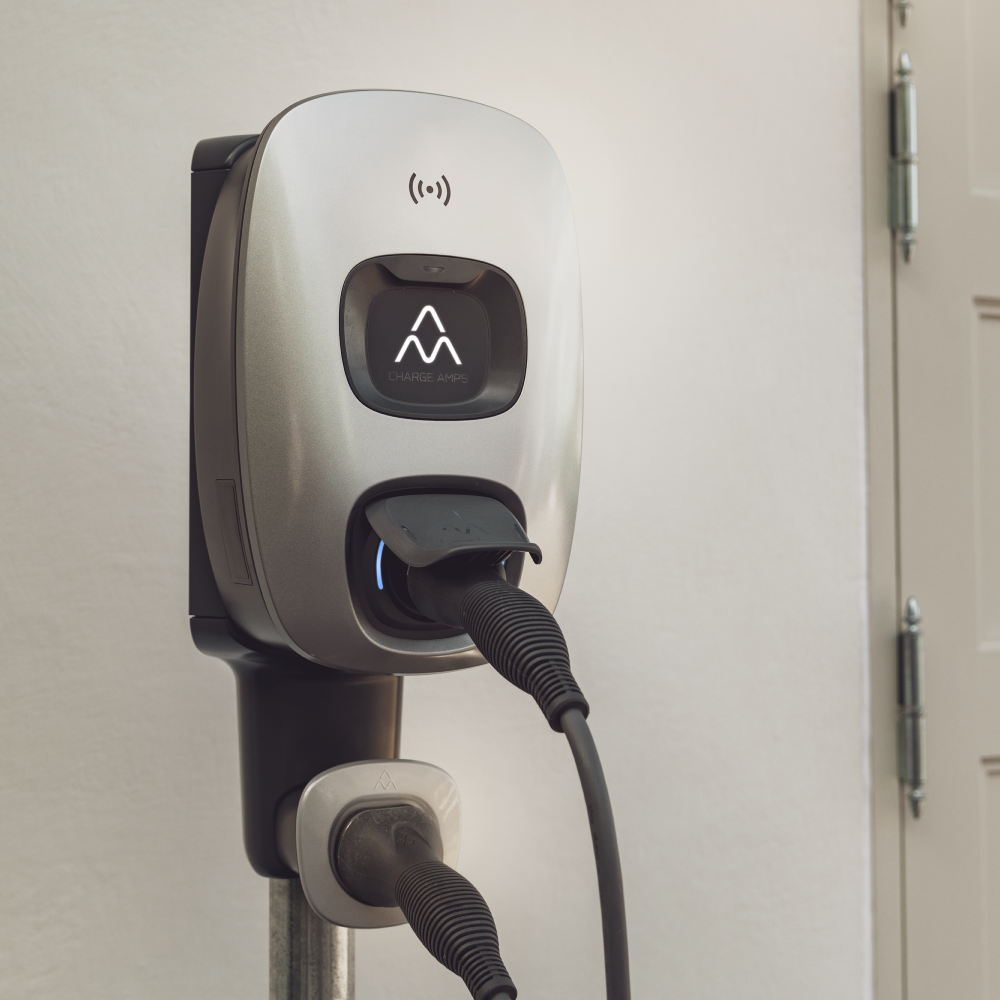

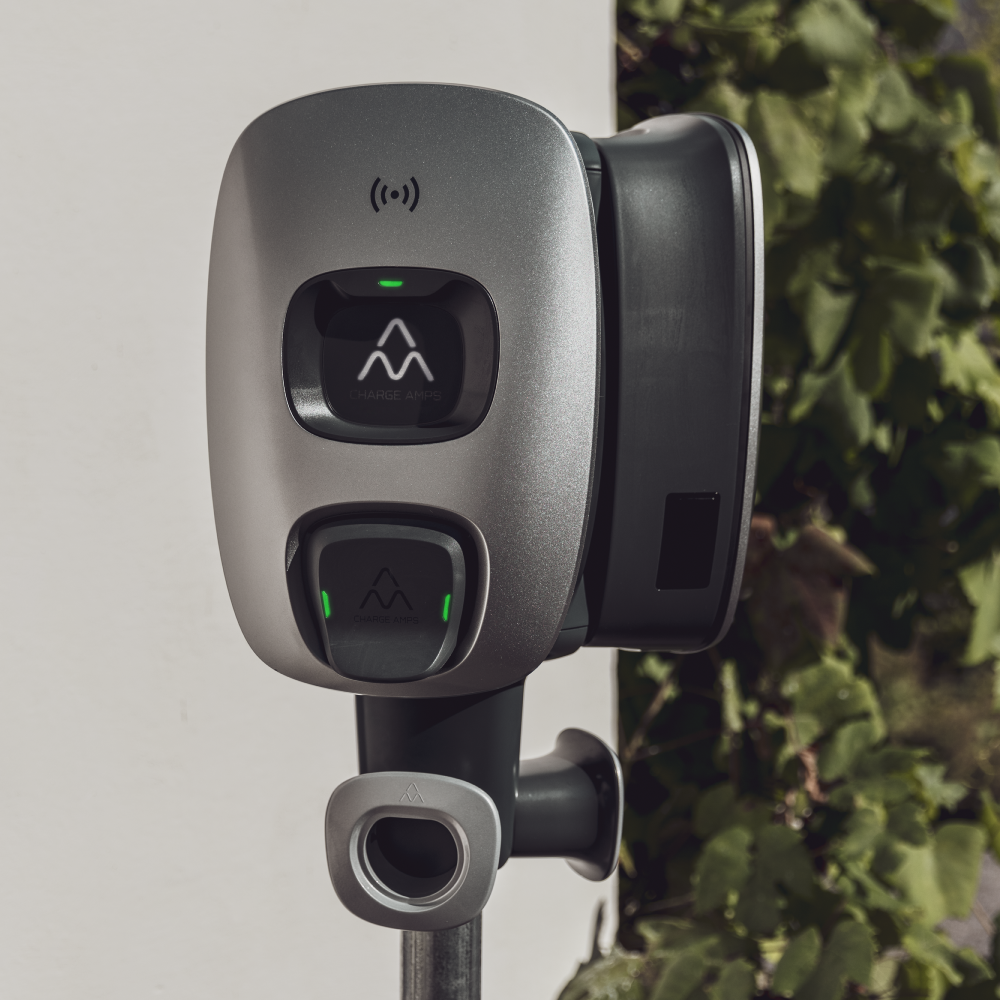

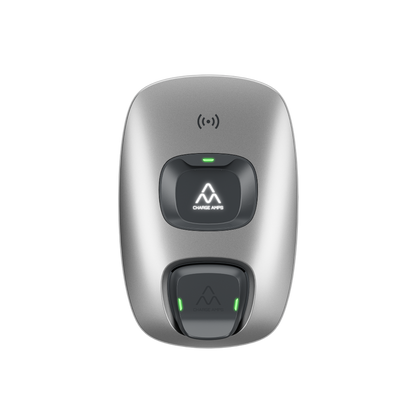

Charge Amps Dawn 22 kW (MID-konform)

Charge Amps Dawn 22 kW (MID-konform)

849,00 €
999,00 € 849,00 €
15% sparen Sold out
Tax included. Shipping calculated at checkout.

Kompatibel mit NeoGrid® AI: Verdiene bis zu 300€ im Jahr

Bis zu 22 kW Ladeleistung: Schnell & effizient Laden

MID-konform: Perfekt für die Abrechnung deines Firmenwagens

§14 EnWG: Bereit für alle gesetzlichen Anforderungen

PV-Überschussladen: Lade automatisch günstigen Solarstrom*

Nachhaltig & Robust: Hergestellt aus recyceltem Kunststoff


*Hinweis: Benötigt das Perific Max-Bundle oder Amp Guard

In stock
  • Free Shipping
  • 30 days return policy
  • 100% Secure Payment

Product description

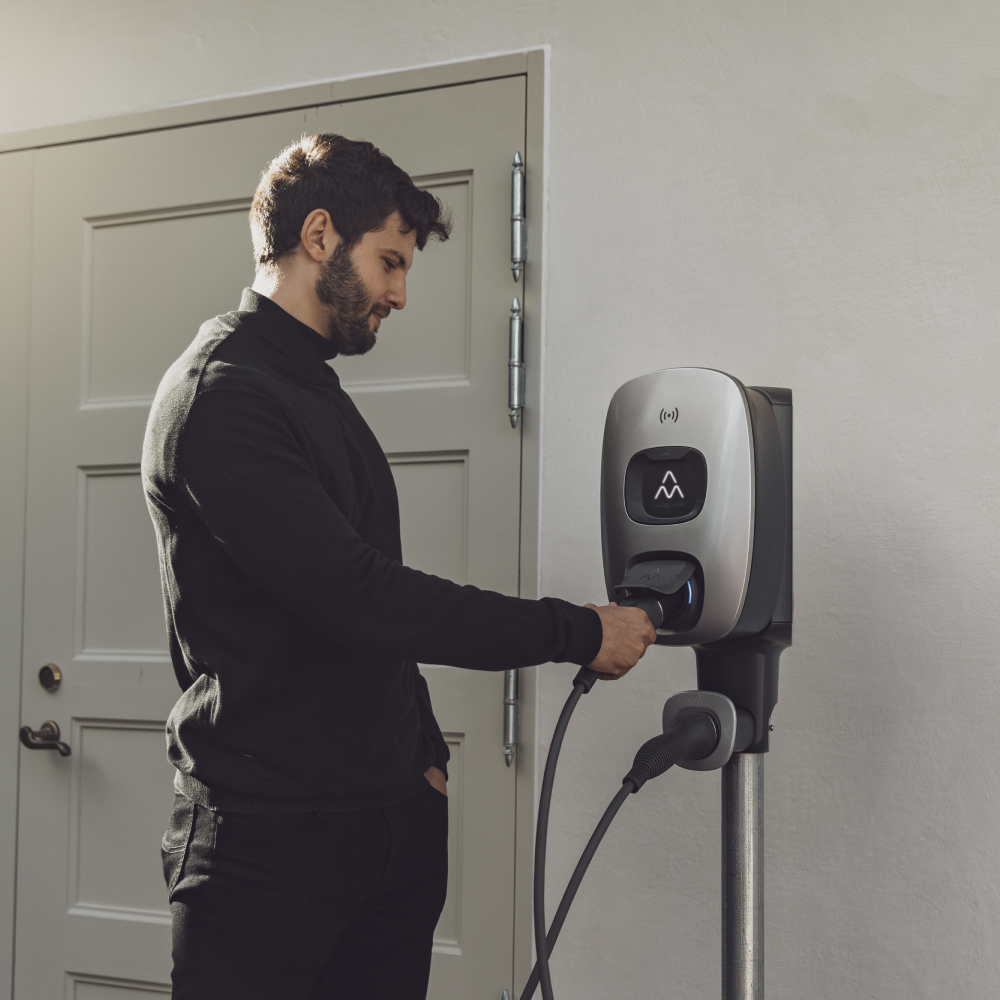

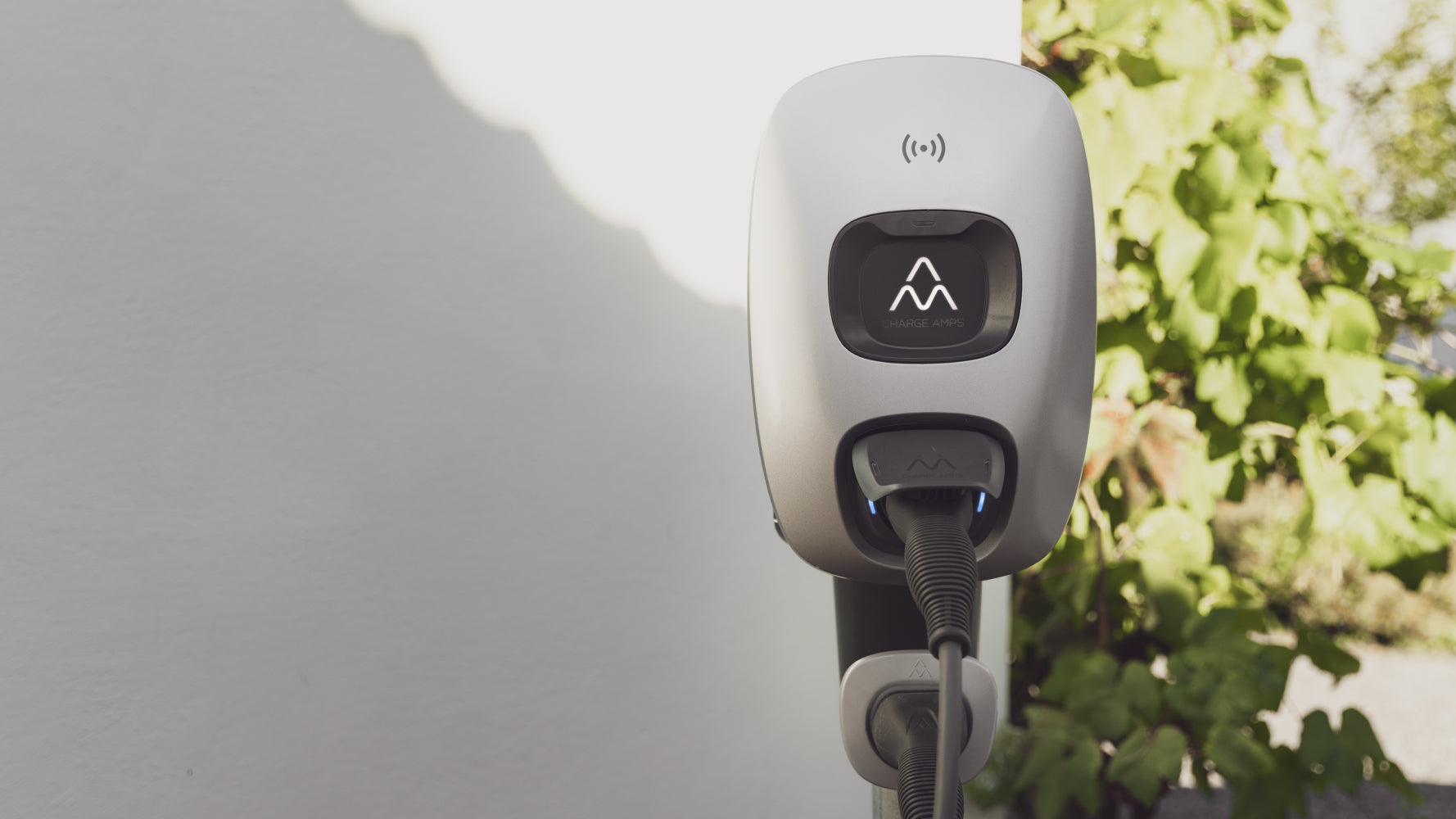

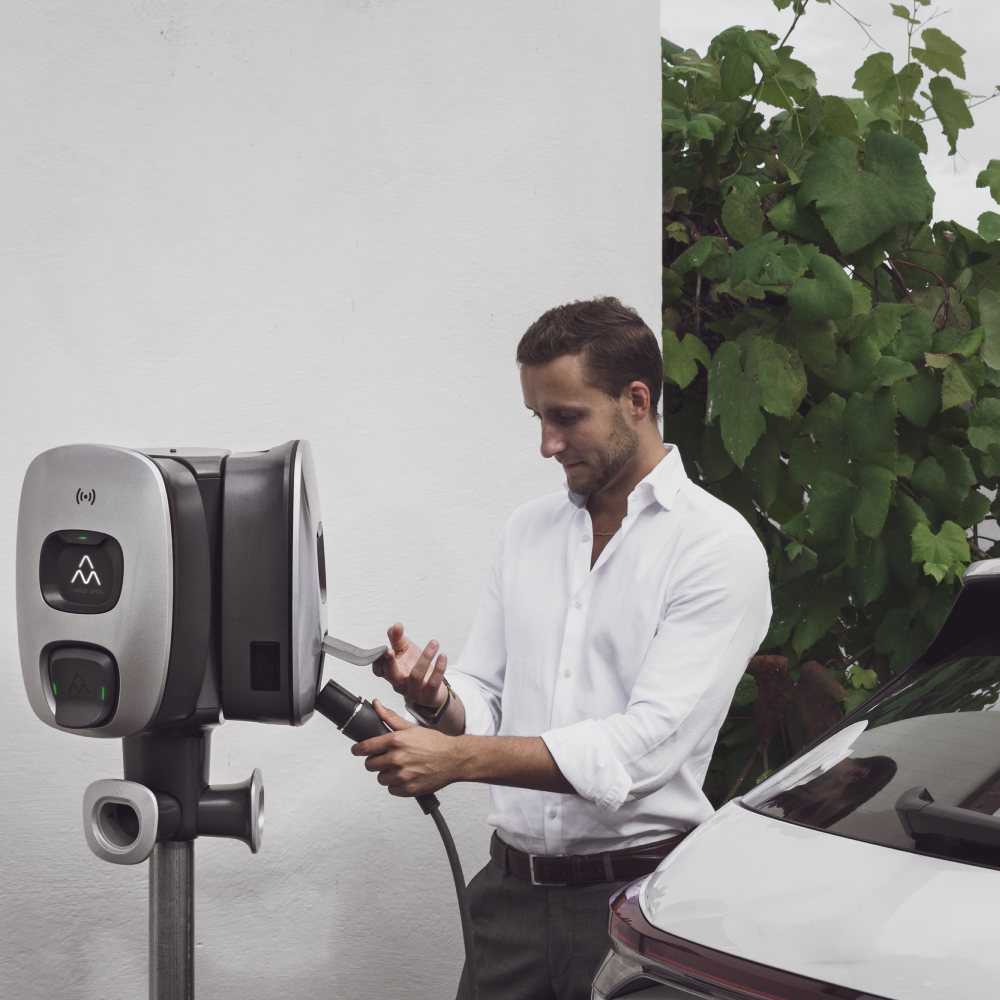

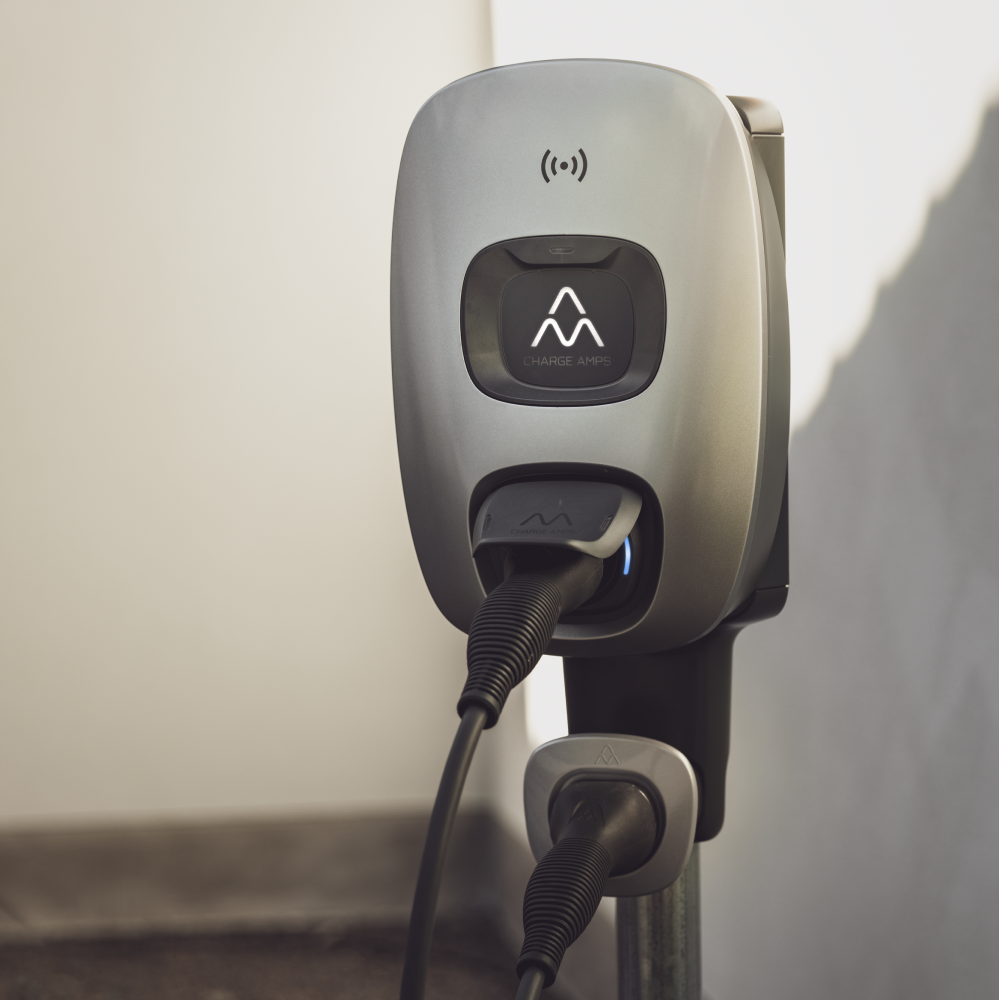

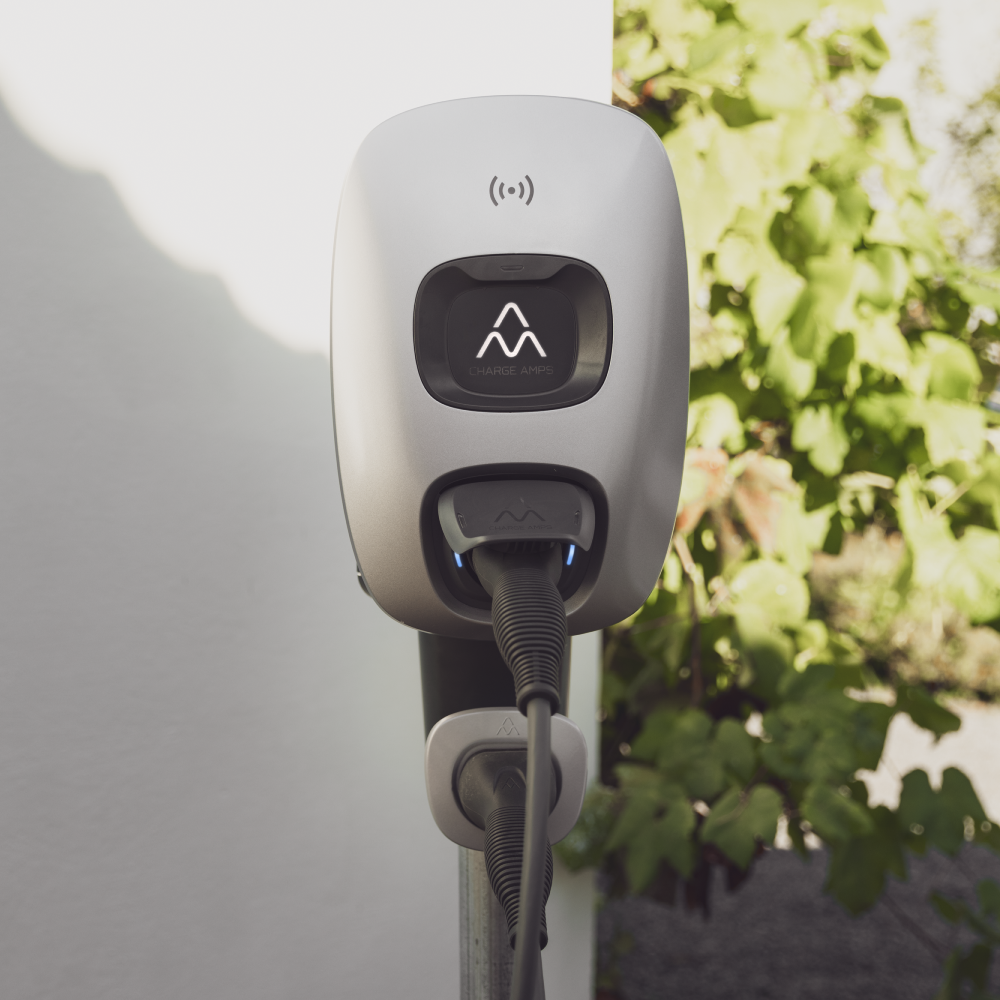

Charge Amps Dawn – The premium wallbox for smart charging and maximum control.

Sometimes you just need a charging solution that can do it all – and that's where the Charge Amps Dawn comes in. Sleek, powerful and equipped with smart technology, it's your perfect partner for efficient, safe and future-oriented charging.

With up to 22 kW of charging power, it charges your electric car in record time - and thanks to the MID-compliant energy meter, you are ideally equipped to handle company car billing in a legally compliant and hassle-free manner.

In combination with Ostrom and NeoGrid® AI, your Dawn becomes a real income and energy-saving miracle: Your car automatically charges at the most favorable and grid-friendly times. This way, you can even earn up to €300 a year – while you sleep.

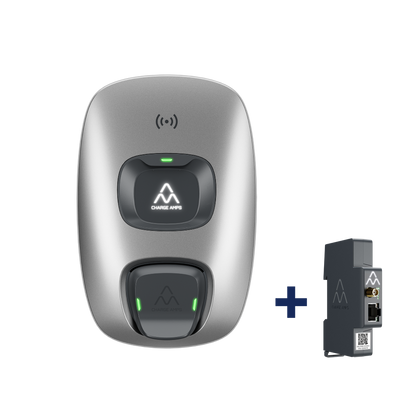

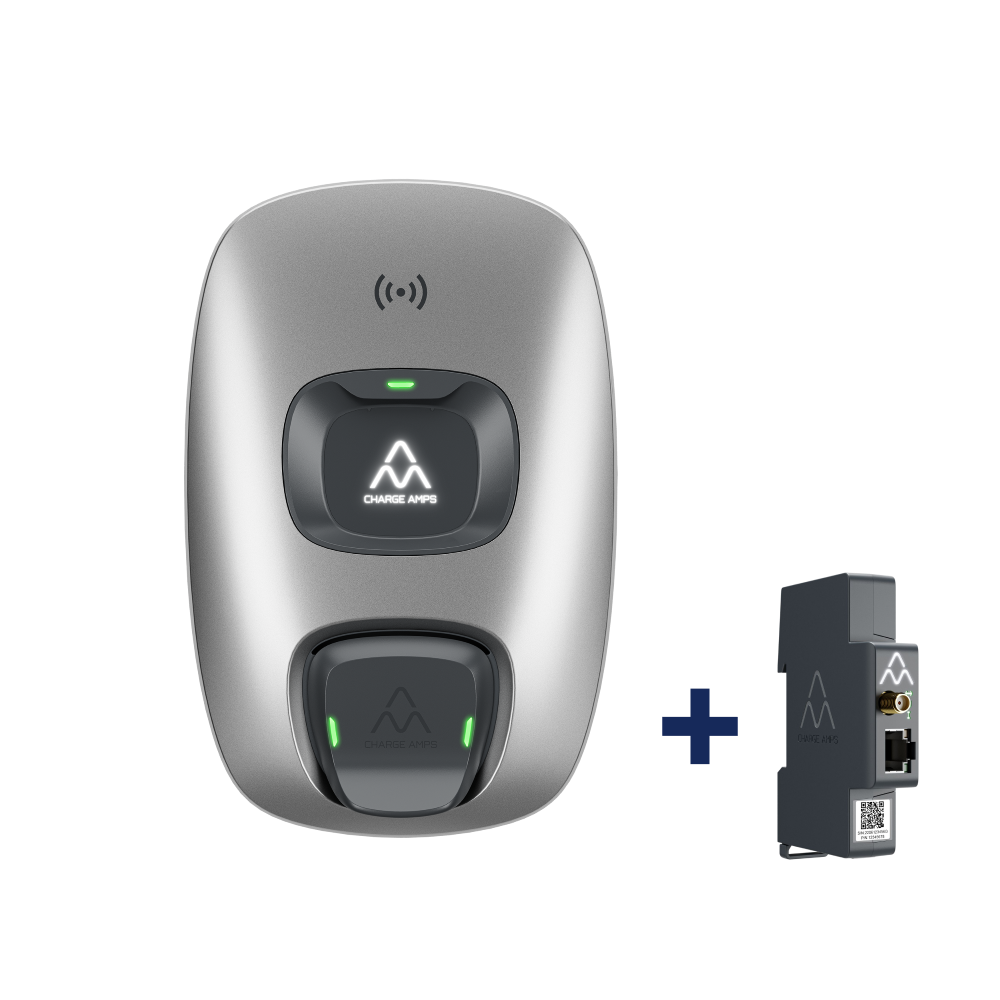

And if you have a PV system? Thanks to surplus charging with Amp Guard, you first use your own solar power before NeoGrid® AI kicks in. Solar power during the day, NeoGrid® AI at night.

Your benefits with Charge Amps Dawn & NeoGrid® AI:

- Perfect for company cars thanks to the MID-compliant energy meter

- Earn up to €300 annually with NeoGrid® AI

- PV surplus charging in conjunction with Amp Guard

- Full flexibility & control via app, RFID and time scheduling

- Suitable for outdoor use (IP54) and with an elegant design by star designer Joachim Nordwall

It's that easy:

1. Connect Charge Amps Dawn and your electric car using the Ostrom app.

2. Set charging target and time

3. Sit back – save, earn, and support the energy transition.

The Charge Amps Dawn is not just a wallbox. It is your key to faster, cheaper and more sustainable charging – private, business and smart in every way."

Technical details

Manufacturer:Charge Amps

Model number:CA-130297

Color:Silver

Manufacturer's warranty:5 years

Size (WxHxD):250 x 145 x 378 mm

Weight:3.5 kg

Protection class:IP54 splash-proof, suitable for outdoor use.

Mounting options:Wall mounting, free-standing column

Charging performance:22 kW (can be throttled down to 11 kW)

Number of charging points:1

Cable blocking:Per app

Current strength:6-32 A configurable

Voltage:230/400 V

Phases: 1 or 3(dynamic)

Charging port:Type 2 socket

Cable length:-

Protective device:RCD Type B with DC & AC protection

Energy meter:MID

Access protection:RFID

Status display:LED, App

Internet connection:WLAN, 4G LTE integrated SIM, LAN with separate module

Further interfaces:-

Protocols:OCPP 1.6J

Compatible with:Billing solution, PV surplus charging

Product safety EU Regulation (EU) 2023/988 (GPSR):Charge Amps AB; Frösundaleden 2B; 169 75 Solna, Sweden; www.chargeamps.com

scope of delivery

Wallbox, Quick Guide, Mounting Kit, RFID Tag

Do you need a Wallbox installation? Get a quote for your wallbox installation in 5 minutes.
Learn more
View full details

Earn up to €300 with Charge Amps & Ostrom

Connect your electric car and the Charge Amps Dawn with the Ostrom app and let your charging process be optimized by NeoGrid® AI. This way, you only charge at the cheapest and most grid-friendly times and can earn up to €300 a year.

Learn more

Precise billing for your company car.

Thanks to the MID-compliant energy meter, charging costs can be easily and legally billed to the employer.

PV surplus charging: This is how to save properly

Charge with solar power during the day using Amp Guard and let NeoGrid® AI optimize your charging process at night. This is how you maximize your savings.

Your charging station becomes an investment.

Get up to €300 a year – simply by charging your electric car in a grid-friendly way. This way, the wallbox pays for itself. You'll recoup the purchase price in just two years.

What is NeoGrid® AI?

NeoGrid® AI is Ostrom's virtual power plant. It connects thousands of devices, such as electric cars and charging stations, into a smart grid. By controlling the connected devices, it can compensate for fluctuations in the power grid.

More on this

Here's how to use NeoGrid® AI:

  • Step 1: Switch to Ostrom

    Switch to Ostrom in just five minutes – thanks to our stress-free switching service. Benefit from 100% green electricity without hidden costs!

  • Step 2: Connect the wallbox and the electric car

    Connect your electric car and your wallbox to fully benefit from NeoGrid® AI.

  • Step 3: Save & profit

    Earn up to 300€ a year by relieving the strain on the network! The earned credit will always be credited to your account the next day.
Mehr erfahren

NeoGrid® AI - Top 5 Questions

Which electric cars and charging stations can use NeoGrid® AI?

The following electric car manufacturers are directly compatible with NeoGrid® AI:

VW, Mercedes, BMW, Audi, Mini, Cupra, Seat, Skoda and Tesla.

The following manufacturers can use NeoGrid® AI in combination with electric cars and charging stations:

Electric car manufacturers: Ford, Subaru, Alfa Romeo, Mazda, Hyundai, MG, Jeep, Nissan, Kia, Ram, Lancia, Renault, Jaguar, Rivian, Land Rover, Vauxhall, NIO, Volvo, Lexus, XPENG, Lucid, Porsche, Dacia and Toyota

Wallbox manufacturers: go-e, Easee, Charge Amps, Zaptec, Schneider Electric, Wallbox, EO, Hypervolt, Heidelberg, myenergi, Pod Point and Tesla

Which tariff plan can I use to utilize NeoGrid® AI?

You can use NeoGrid® AI with all of our electricity tariffs. However, with our fixed-price tariff SimplyFair, you only benefit from the additional earnings of up to €300.

With our dynamic tariff, you also benefit from cost savings by only charging during the cheaper hours. This way, you can save up to 50% of your electricity costs with NeoGrid® AI.

Nutzt NeoGrid® AI bidirektionales Laden bzw. Vehicle-to-Grid (V2G)?

Beim bidirektionalen Laden bzw. V2G wird Strom aus deinem E-Auto wieder ins Netz eingespeist.

NeoGrid® AI macht das nicht: Statt dein E-Auto physisch zu entladen, macht unser virtuelles Kraftwerk das nur „virtuell”. Der für deinen Ladevorgang reservierte Strom wird virtuell verkauft und dem Netz zurückgegeben.

Das hat mehrere Vorteile gegenüber bidirektionalem Laden bzw. V2G:

  • Du benötigst keine spezielle Wallbox
  • (Fast) alle E-Autos sind bereits heute kompatibel, entweder direkt oder über eine Wallbox.
  • Da der Strom gar nicht erst ins Haus gelangt, zahlst du keine Netzentgelte auf den verkauften Strom. So erhältst du einen höheren Ertrag.

What does "netzdienlich" mean?

The generation of electricity and the consumption of electricity in the power grid must always be in balance in order to ensure a constant grid frequency (50 Hertz in Europe).

However, challenges such as the weather-dependent feed-in of renewable energies and the increasing consumption of electric cars, heat pumps, etc. are making this increasingly difficult.

NeoGrid® AI provides the grid with the necessary flexibility to compensate for fluctuations. This supports the grid and you earn money in the process.

Will charging with NeoGrid® AI damage my battery?

In short: No.

Studies have proven that charging your electric car battery with NeoGrid® AI does not cause any harm, as long as you follow the same precautions as with normal charging.

  • Depth of charge: Don't charge too much at once. Set your charging target sensibly in the Ostrom app.
  • Charging goal : Charge enough so that you don't go below 20% on your next trip, but never more than 80%.
  • Temperature: To protect your electric car from heat and cold, you should park it in a sheltered location, such as a garage, for charging.
  • Charging speed: Charge at home (e.g. 11 kW or 22 kW overnight) and only use fast charging stations when you really need them.

Read more about it in our blog post: LINK

Can I use PV surplus charging AND NeoGrid® AI?

Unfortunately, surplus charging is not yet compatible with NeoGrid® AI.

However, you can use both functions separately. Charge during the day with free solar power and let NeoGrid® AI handle the charging process at night.

You can decide at any time whether you want to use NeoGrid® AI.
