Charge Amps Amp Guard
Charge Amps Amp Guard
PV surplus charging: Use excess solar power for your electric car – for sustainable and affordable charging.
Smart load distribution: The Amp Guard 63A ensures that your electric car only charges with the available residual energy – this allows you to cook, wash and use other devices at the same time without blowing fuses.
Future-proof & flexible: Works with 1- to 3-phase power, up to 63 A, controllable via Wi-Fi or LAN and integrated into the Charge Amps Cloud.
In stock
Couldn't load pickup availability
- Free Shipping
- 30 days return policy
- 100% Secure Payment
Product description
Product description
The Charge Amps Amp Guard 63A is the ideal addition to your wallbox. It ensures dynamic load management, protects your fuses from overload and intelligently distributes power between household appliances and your electric car. Thanks to Wi-Fi or LAN connection as well asPV surplus chargingyou can even use excess solar power for sustainable charging.
Technical details
Technical details
Measuring range (current): ± 0–63 A
Measuring range (voltage): 85–256 VAC, single-phase to three-phase, 50 Hz
Network: LAN, Wi-Fi 802.11b/g/n 2.4 GHz
Frequency range: 2400–2500 MHz
Maximum transmit power: 20 dBm
Power supply:
- Nominal voltage: 12 VDC, 0.5 A (included in the scope of delivery)
- Power supply: 230 VAC (±15 %), 50 Hz
Installation: DIN rail mounting in the control cabinet
- 1M Charge Amps Amp Guard
- 1M Power Supply
Dimensions (W × D × H):
- Amp Guard: 17.5 × 73 × 100 mm
- Power supply: 17.5 × 58 × 90 mm
Cable length of current sensor: 80 cm (must not be changed to ensure measurement accuracy)
Maximum cable diameter for current sensors: 10 mm
Rated secondary current of the current sensors: 30(36) mA
PMD classification: PMD-x, I and U, SD, Kx
Safety rating: CAT III 300 V
Scope of delivery
Scope of delivery

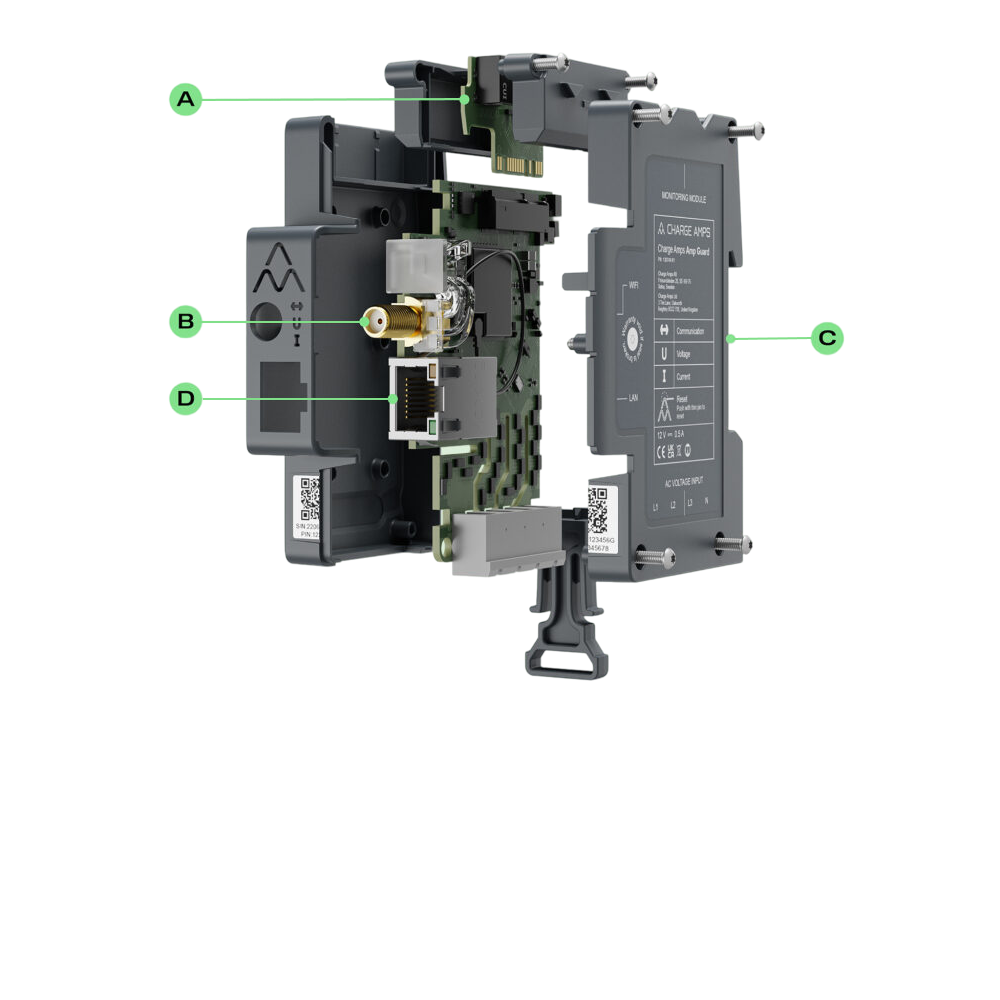

1x Charge Amps Amp Guard
1x VDC power supply that powers the Charge Amps Amp Guard
1x Monitoring module, consisting of a sensor cartridge and three connected current sensors including cables
1x Terminal block for voltage measurement
1x Wi-Fi antenna
1x 12-V power cable
1x Quick Installation Guide
