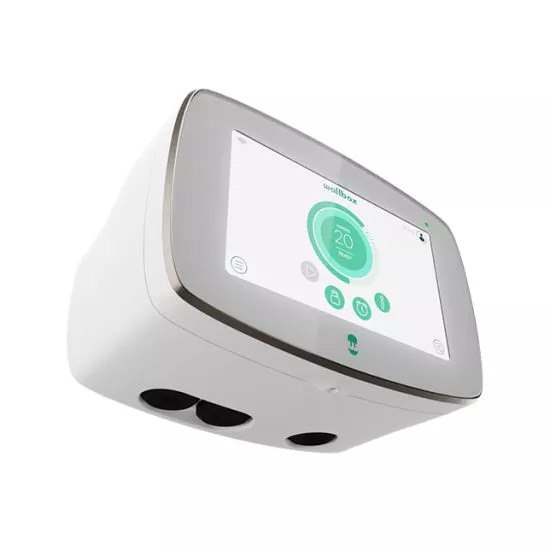

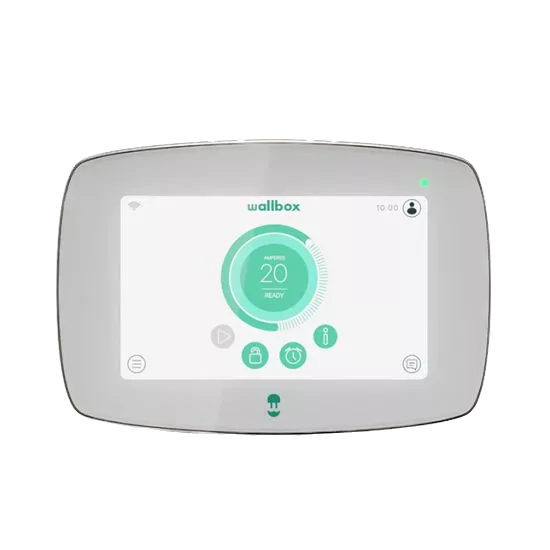

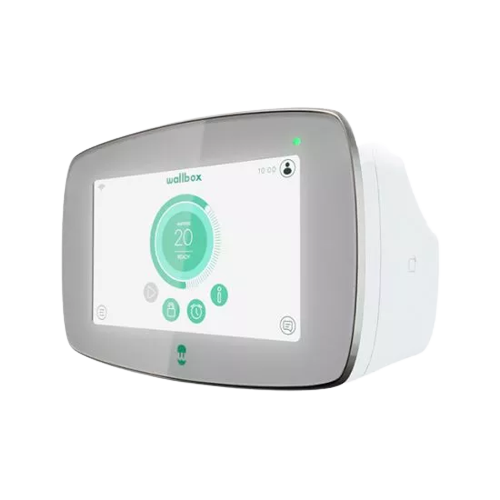

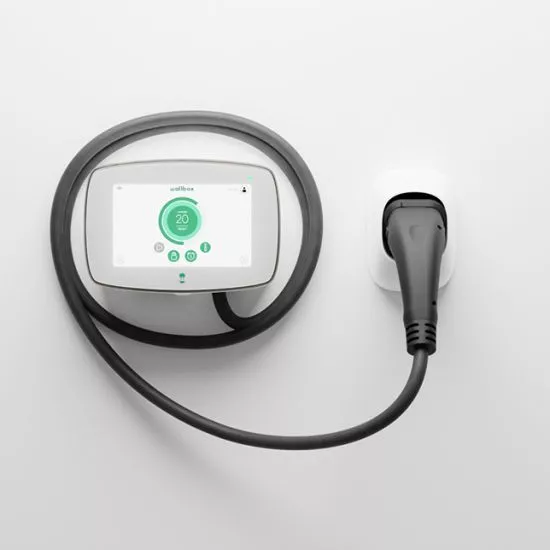

Wallbox Commander 2 5m (white)

Wallbox Commander 2 5m (white)

Regular price €999,00
Regular price Sale price €999,00
Liquid error (snippets/price line 93): divided by 0% sparen Sold out
Tax included. Shipping calculated at checkout.

Wallbox Commander 2 CMX2-0-2-4-8-001

  • Shared charging made easy
  • Up to 22 kW charging power (charge 10x faster)
  • Configurable charging power
  • Incl. 5m cable type 2 (suitable for all type 2 electric vehicles)
  • Integrated energy meter (uncalibrated)
  • Access control via RFID cards, PIN or app
  • Communication via LAN, WLAN or Bluetooth
  • Integrated DC residual current sensor
  • Simple operation and status display directly on the charging station via touchscreen display and in the app
  • Incl. free MyWallbox Business backend
  • Compatible with various backend systems via OCPP 1.6

Cleverly charge your electric cars during operation with the Wallbox Commander 2! The wall box scores with integrated load management and billing system. You have full control via touchscreen, app or PC and can conveniently control charging processes. Thanks to the power sharing feature, you can charge several vehicles at the same time - the charging power is automatically adjusted. The robust construction is IP54 and IK10 certified and allows for indoor or outdoor installation. This makes the Commander 2 a smart solution for your fleet!

Technical Specifications

Manufacturer Wallbox
Color White
Size (WxHxD) 221x152x115 mm (without cable)
Weight 2.4 kg (without cable)
Protection Class IP54 splashproof, suitable for outdoor use
Mounting Options Wall mounting, pedestal
Scope of Delivery Wall box, operating instructions, assembly set
Charging Power 22kW, 11kW, 7.4kW, 5.5kW, 3.7kW, configurable
Number of Charging Points 1
Amperage 6A, 8A, 10A, 12A, 13A, 14A, 16A, 20A, 24A, 25A, 32A, configurable
Tension 230/400V
Phases 3-phase
Charging port Type 2 charging cable
Cable length 5 m
Protective Device DC protection
Energy Meter uncalibrated
Access Protection RFID, App, PIN
Status Indicator LED, display, app
Internet Connection LAN, WiFi
Other Interfaces Bluetooth
Integrated Functions smartphone app
View full details

What do you need? 11 or 22 kW.

More kW, faster charges! But not every car can take 22 kW. This means that although you can use a wallbox with 22 kW charging power, your car will still only receive 11 kW, and even if you mainly charge at night, you don't need a fast 22 kW wallbox as your car will have enough time to charge.

Overview of the wallbox protection classes!

If you want to place your wallbox outdoors, the protection class of the wallbox is an important property that you have to take into account.

To place the wallbox outside you need at least protection class IP54 (dust-proof and splash-proof).

Our recommendation: The Zaptec Go!

You know your needs best. How many kW do you need? What is your budget? Do you want to charge your company car and need an electricity meter?

We therefore cannot give you a perfect recommendation. But if you are looking for a robust, small wallbox where you can chop off all the basic functions, we recommend the Zaptec Go.

To the Zaptec Go
