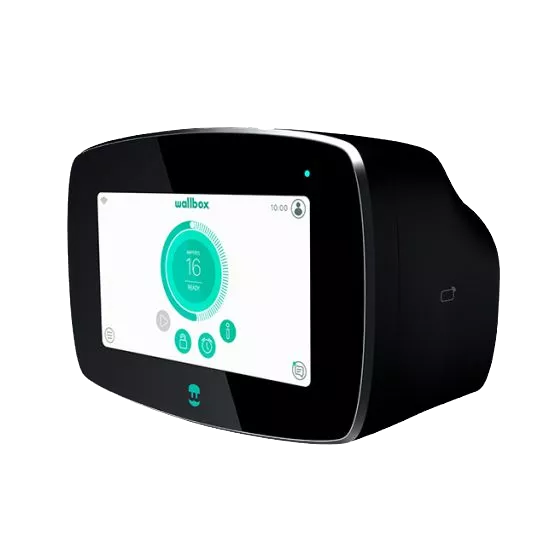

Wallbox Commander 2 5m (black)
Wallbox Commander 2 5m (black)
Couldn't load pickup availability
Wallbox Commander 2 CMX2-0-2-4-8-002
- Shared charging made easy
- Up to 22 kW charging power (charge 10x faster)
- Configurable charging power
- Incl. 5m cable type 2 (suitable for all type 2 electric vehicles)
- Integrated energy meter (uncalibrated)
- Access control via RFID cards, PIN or app
- Communication via LAN, WLAN or Bluetooth
- Integrated DC residual current sensor
- Simple operation and status display directly on the charging station via touchscreen display and in the app
- Incl. free MyWallbox Business backend
- Compatible with various backend systems via OCPP 1.6
Cleverly charge your electric cars during operation with the Wallbox Commander 2! The wall box scores with integrated load management and billing system. You have full control via touchscreen, app or PC and can conveniently control charging processes. Thanks to the power sharing feature, you can charge several vehicles at the same time - the charging power is automatically adjusted. The robust construction is IP54 and IK10 certified and allows for indoor or outdoor installation. This makes the Commander 2 a smart solution for your fleet!
Technical Specifications
| Manufacturer | Wallbox |
|---|---|
| Color | Black |
| Size (WxHxD) | 221x152x115 mm (without cable) |
| Weight | 2.4 kg (without cable) |
| Protection Class | IP54 splashproof, suitable for outdoor use |
| Mounting Options | Wall mounting, pedestal |
| Scope of Delivery | Wall box, operating instructions, assembly set |
| Charging Power | 22kW, 11kW, 7.4kW, 5.5kW, 3.7kW, configurable |
| Number of Charging Points | 1 |
| Amperage | 6A, 8A, 10A, 12A, 13A, 14A, 16A, 20A, 24A, 25A, 32A, configurable |
| Tension | 230/400V |
| Phases | 3-phase |
| Charging port | Type 2 charging cable |
| Cable length | 5 m |
| Protective Device | DC protection |
| Energy Meter | uncalibrated |
| Access Protection | RFID, App, PIN |
| Status Indicator | LED, display, app |
| Internet Connection | LAN, WiFi |
| Other Interfaces | Bluetooth |
| Integrated Functions | smartphone app |
| Logs | OCPP |
What do you need? 11 or 22 kW.
More kW, faster charges! But not every car can take 22 kW. This means that although you can use a wallbox with 22 kW charging power, your car will still only receive 11 kW, and even if you mainly charge at night, you don't need a fast 22 kW wallbox as your car will have enough time to charge.
Overview of the wallbox protection classes!
If you want to place your wallbox outdoors, the protection class of the wallbox is an important property that you have to take into account.
To place the wallbox outside you need at least protection class IP54 (dust-proof and splash-proof).
Our recommendation: The Zaptec Go!
You know your needs best. How many kW do you need? What is your budget? Do you want to charge your company car and need an electricity meter?
We therefore cannot give you a perfect recommendation. But if you are looking for a robust, small wallbox where you can chop off all the basic functions, we recommend the Zaptec Go.
Wallbox comparison
| Wallbox | ||||
|---|---|---|---|---|
Stromzähler Einen Stromzähler brauchst du vor allem, wenn du deine Wallbox teilen möchtest. Der Stromzähler ermöglicht eine genaue Abrechnung und Zuordnung, wer wie viel geladen hat. Auch wer sein Dienstfahrzeug zu Hause laden möchte, braucht einen Stromzähler.
|
|
|
|
|
Authentifizierung Beschränke den Zugang zu deiner Wallbox auf bestimmte Personen.
|
|
|
|
|
Kommunikation Wie überträgt die Wallbox Daten in deine App.
|
|
|
|
|
Ladelastenmanagement Dies ist besonders wichtig, wenn du mehrere Wallboxen nutzen willst.
|
|
|
|
|
Ladeleistung Eine höhere Anzahl an kW führt zu einem schnellerem laden. Lädt dein Elektroauto jedoch nur mit 11 kW kannst du dies nicht durch eine 22 kW Wallbox beschleunigen.
|
|
|
|
|
Ladekabel integriert? |
|
|
|
|
Integrierbar in der Ostrom-App Integriere die Wallbox in die Ostrom-App und nutze verschiedene Funktionen um den Ladevorgang zu optimieren.
|
|
|
|
|
OCPP 1.6 kompatibel Willst du Software von Dritten nutzen, ist die OCPP 1.6-Kompatibilität standard und erlaubt dir deine Wallbox zu verbinden.
|
|
|
|
|
Außenanbringung Nicht alle Wallboxen dürfen Außen angebracht werden. Willst du deine Wallbox also nicht in der Garage anbringen, brauchst du mindestens die Schutzklasse IP54 oder IP55.
|
|
|
|
|
Montagemöglichkeiten |
|
|
|
|
DC-Fehlerstromsensor Ein Fehlerstromsensor ist Pflicht. Besitzt eine Wallbox keinen Sensor, muss dieser bei der Installation nochmal extra installiert werden.
|
|
|
|
|
