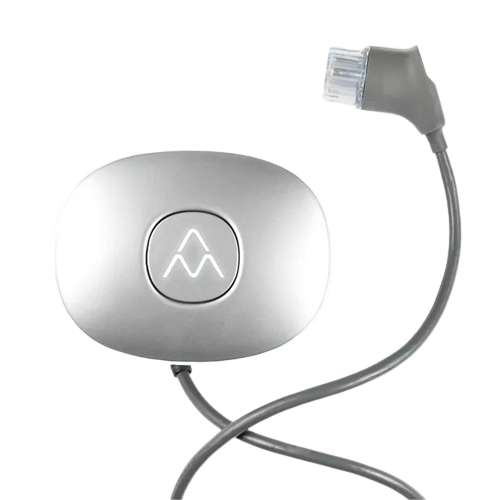

Charge Amps Halo 100308 EV Charging Station
- Up to 11 kW charging power (5x faster charging)
- Incl. 7.5m cable type 2 (suitable for all type 2 electric cars)
- Integrated energy meter (uncalibrated)
- Access control via RFID cards or Ostrom App
The Charge Amps Halo charging station offers a charging power of up to 11 kW and is equipped with a 7.5 m type 2 cable, which enables charging of electric cars five times faster than with a conventional socket. With its robust, compact construction made of recycled aluminum and the highest protection class IP66 on the market, it defies the most adverse weather conditions while offering an attractive design. The charging station has an integrated Schuko socket for additional devices such as e-bikes, access control via RFID cards and an integrated DC residual current sensor to ensure safety. The charging station offers easy operation via WLAN via the Charge Amps app and cloud, with which you can keep an eye on charging processes, consumption and electricity costs at all times and receive software updates directly on the wall box. Designed and manufactured in Sweden for demanding users worldwide, the Charge Amps Halo charging station is backed by a full three-year manufacturer's guarantee thanks to its durability and performance.
Technical Specifications
| Manufacturer | Charge Amps |
|---|---|
| Color | Silver |
| Size (WxHxD) | 262.4 x 159.4 x 203.2mm |
| Weight | 4kg |
| Protection Class | IP66-protected against heavy rain, suitable for outdoor use |
| Mounting Options | Wall mounting, pedestal |
| Scope of Delivery | Charging station, external WiFi antenna, 5-pin terminal block, wall mount for charging cable, RFID tag, installation manual |
| Charging Power | 11kW |
| Number of Charging Points | 1 |
| Tension | 230/400V |
| Phases | 3-phase |
| Charging Port | Type 2 charging cable |
| Cable Length | 7.5m |
| Protective Device | DC protection |
| Energy Meter | uncalibrated |
| Access Protection | RFID |
| Status Indicator | LED, App |
| Internet Connection | WLAN |
| Integrated Functions | Smartphone app |
What do you need? 11 or 22 kW.
More kW, faster charges! But not every car can take 22 kW. This means that although you can use a wallbox with 22 kW charging power, your car will still only receive 11 kW, and even if you mainly charge at night, you don't need a fast 22 kW wallbox as your car will have enough time to charge.
Overview of the wallbox protection classes!
If you want to place your wallbox outdoors, the protection class of the wallbox is an important property that you have to take into account.
To place the wallbox outside you need at least protection class IP54 (dust-proof and splash-proof).
Our recommendation: The Zaptec Go!
You know your needs best. How many kW do you need? What is your budget? Do you want to charge your company car and need an electricity meter?
We therefore cannot give you a perfect recommendation. But if you are looking for a robust, small wallbox where you can chop off all the basic functions, we recommend the Zaptec Go.
Wallbox comparison
| Wallbox | ||||
|---|---|---|---|---|
Stromzähler Einen Stromzähler brauchst du vor allem, wenn du deine Wallbox teilen möchtest. Der Stromzähler ermöglicht eine genaue Abrechnung und Zuordnung, wer wie viel geladen hat. Auch wer sein Dienstfahrzeug zu Hause laden möchte, braucht einen Stromzähler.
|
|
|
|
|
Authentifizierung Beschränke den Zugang zu deiner Wallbox auf bestimmte Personen.
|
|
|
|
|
Kommunikation Wie überträgt die Wallbox Daten in deine App.
|
|
|
|
|
Ladelastenmanagement Dies ist besonders wichtig, wenn du mehrere Wallboxen nutzen willst.
|
|
|
|
|
Ladeleistung Eine höhere Anzahl an kW führt zu einem schnellerem laden. Lädt dein Elektroauto jedoch nur mit 11 kW kannst du dies nicht durch eine 22 kW Wallbox beschleunigen.
|
|
|
|
|
Ladekabel integriert? |
|
|
|
|
Integrierbar in der Ostrom-App Integriere die Wallbox in die Ostrom-App und nutze verschiedene Funktionen um den Ladevorgang zu optimieren.
|
|
|
|
|
OCPP 1.6 kompatibel Willst du Software von Dritten nutzen, ist die OCPP 1.6-Kompatibilität standard und erlaubt dir deine Wallbox zu verbinden.
|
|
|
|
|
Außenanbringung Nicht alle Wallboxen dürfen Außen angebracht werden. Willst du deine Wallbox also nicht in der Garage anbringen, brauchst du mindestens die Schutzklasse IP54 oder IP55.
|
|
|
|
|
Montagemöglichkeiten |
|
|
|
|
DC-Fehlerstromsensor Ein Fehlerstromsensor ist Pflicht. Besitzt eine Wallbox keinen Sensor, muss dieser bei der Installation nochmal extra installiert werden.
|
|
|
|
|
